In-Line Magnets

IMI also provides magnets to fit your pneumatic conveying line without restricting your product flow. An aerodynamic cone guides the material in a uniform flow around the outside of the magnetic tube. This allows for the ferrous material to be pulled from the product line, and held to the magnet until it is removed and disposed. This magnet features a leak-resistant seal, EZ-Clean Stripper Sleeve, a door-mounted magnet for ease of cleaning, and stainless steel construction. An optional cart is available to move the magnet to multiple lines, making this an easy to use and economical unit.

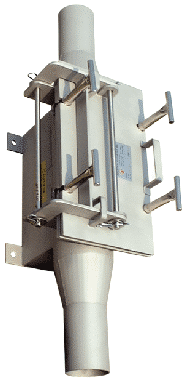

	Exposed Pole Tube Magnet The Exposed Pole Tube Magnet is ideal for the conveying of sluggish material, or when product degradation is a problem. The magnet is either built into the housing (ceramic magnet) or access door (rare earth magnet). This allows for the easiest cleaning of each magnet. Standard pipe-size ends and custom line sizes make it easy to install in any pneumatic line.



Vacuum Line Magnet The 4JIT magnet will catch tramp metal in vacuum systems from bins, boxes, hoppers and gaylords. Metal is pulled from the product line without the material flow being impeded, and protects material from product degradation. The quick-release clamp opens the unit, and allows the magnet to be wiped clean with either a glove or shop rag.



		Pipe Magnets IMI’s Pipe Magnets are made to protect your equipment and purify your product in vertical flow applications. The sturdy all0-welded construction, and easy-to-clean door mounted magnets is an effective unit used in a wide range of industries – from feed and grain, to food processing and chemical applications.




				To visit IMI on the Web, click on www.magnetics.com.
