Control & Metering provide a full range of bulk bag fillers for all applications. Manual systems, Semi-Automatic and Fully Automated systems. Volumetric and Gravimetric Bulk Bag Fillers. From low capacity fillers to automated systems filling 70 bags per hour, C&M has a proven solution to meet your requirements. The patented Cone Table is the single most effective component within the filling system.

Cone Table Bulk Bag Filler

72” Tall Bags, Crumb Rubber

Do your filled bulk bags look like this?

• Are your vibrators tearing up your bulk bag filler?
• Re-welding? Patching?
• Replacing Load cells?

They don’t have to...

….Get Stable Filled Bags

Patented Cone Table - The cone table is pyramidal in shape and lifts up approximately 18” to densify the bag. The cone forces material into the corners of the bag, while vibrating the bag directly.

Densifying a pallet? Why would you ever want to try to densify through a pallet? Densify your bag/product directly.


Cone Table

The key component in filling any bag properly is the densification system.

Most competitors use a vibration or air system. Both must vibrate through a pallet. Mechanical failures – welds and load cells are common problems.

C&M’s patented Cone Table provides direct product densification without negative affects described above.

Test our unit – there is nothing like it, anywhere!

The Patented Cone Table - Principle of Operation

Vibrating Cone Table

Direct Contact with the bag. No “thru pallet” densification

Pyramidal Cone table forces material into the corners of the bag when it actuates.

Both result in unparalleled filling – more material in smaller bags and completely stable bags.

Generally Mounted Independent of the Filling Frame.

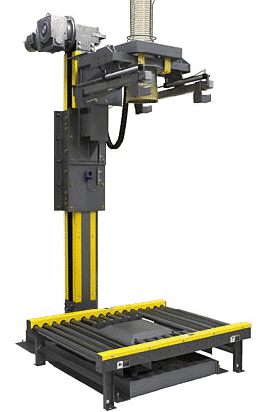

C&M’s Cone Table Elite (CTE) features an industry first dual load cell hang weighing system.  It’s robust, accurate and repeatable ensuring that bulk bags of any size can be filled with +/- 1-2 lb weighing accuracy at any speed.  This means you can reduce the overfill of your bulk bags and generate incremental revenue and profit as a result.

As always with Control and Metering equipment, the CTE is a very robust machine.  Its new design incorporates fewer parts than ever before to provide unmatched reliability.  C&M is the only manufacturer to offer a 2 YEAR WARRANTY!

The CTE features:

The patented Cone Table Densification system.

Hang Weighing - Results in extremely accurate, repeatable bag weights. The load cells are located in the upper frame, no longer susceptible to water and product build-up or operator “accidents”.

Bag Stretching - Since the bag is suspended from its loops through much of the filling cycle the bag fabric is stretched which greatly assists with producing a stable filled package.

Net Weighing – Weighing only the bag and product allow for lower rated load cell capacities, higher weight to noise ratios and better, more repeatable accuracies. Accuracy to 0.10% are attainable.

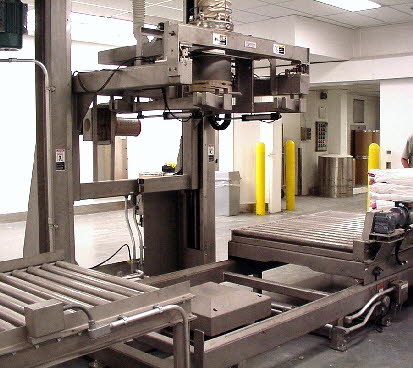

CTE with cone table densification, hang weighing, automatic bag removal.

• Pallet Dispenser
• Automatic Bag Height Compensation - PLC Controlled
• Bag hanging arms extend to operator at operator’s actual height - PLC Controlled
• Hang Weighing - Weighs bag only
• Hung Bag - Stretches bag properly
• Cone Table - Densifies the bag directly while forcing material into the corners of the bag
• Takeaway conveyor

• Cone Table Densification
• Accuracy + 1-2 lbs.
• Stable Filled Bags
• More Product in Smaller Bags
• Hang Weighing

• Bag Stretching
• Dual Load Cell System
• Liner Retaining Ring
• Automatic Bag Height Adjustment
• Auto Loading Height Adjustment
