Bag Houses

Clean Air Technologies, a division of C.P. Environmental Inc., offers a full range of dust collector solutions including Bag houses, Cartridge Collectors, Cyclones, Bin Vent Filters and Filter Receivers. Reverse Jet Pulsation and, when required, Mechanical Shaker technologies are offered. Ranges from 50 to 250,000 CFM.

What differentiates one dust collector manufacturer from another? Design, Air to Cloth Ratios, Interstitial Velocity, Filter Centerlines, Filter Materials, Construction and Experience.

Product Offerings

  • Bag Houses
  • Specialty Collectors
  • Cartridge Collectors
  • Bin Vent Filters
  • Cyclones
  • Bag Dump Stations

Experience

Clean Air Technologies’ sales managers and engineers, on average, have spent 21+ years in the industry, each. Experience the Clean Air Technologies difference!

Construction

Compare the welding procedures, metal thickness and flanges. Many competitors will bend their sheet metal sides for flanges. lean Air Technologies provides angle irons for all flanges, to ensure proper connections from one plenum to the next.

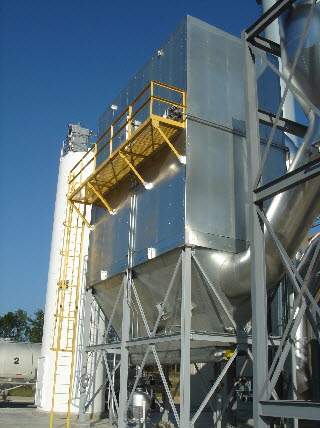

High Temperature Bag House

High Temperature Bag House

Shop Insulated Bag House with Integral Heaters and Sensors

DesignIssues
  • Filter Access – Clean Air Side or Dirty Air Plenum
  • Filter Type
  • Air-to-Cloth Ratio
  • Interstitial Velocity- Critical to proper collection and filter life
  • Housing Gauge – 12 gauge minimum
  • Tube Sheet – 10 gauge with ¼”x 4” bracing
  • Base Flanges – Structural steel, not bent housing (12-16 gauge)
  • Diaphragm Valves - Mounted, plumbed (SS) & wired
  • Unions – Pipe not rubber
  • Interior Paint - 2 mils, enamel coated 3 mils.
Tube Sheet

Tube Sheet with Pulse Pipes
Tube Sheet is fabricated of Structural Steel with ¼” x 4” angle iron every 4’ to prevent tube sheet from warping by operators walking on the tube sheet. Warping must be prevented as it will lead to dust leaking past the filters.


Comparison Package1

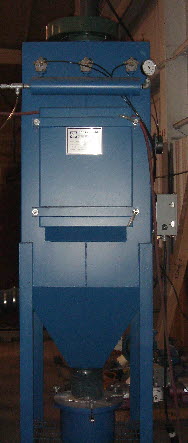

Cartridge Collector

Cartridge Collector

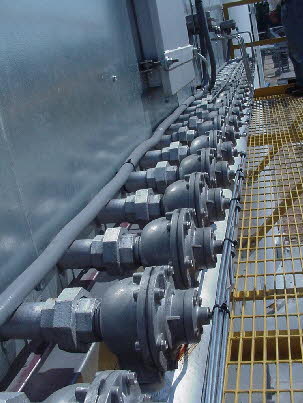

Pipe Unions

Pipe Unions Provided not rubber
Providing long term reliability

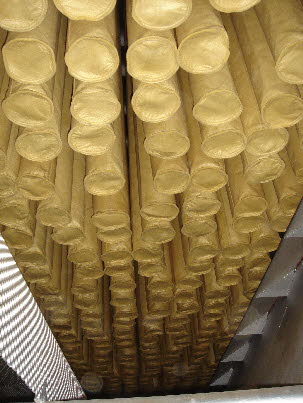

Bag House

High Temperature, High Acid Bag House
Tetra-Tex Filters to meet 400F and Sulfuric Acid atmosphere
